General
Dimensions
Unfolded: 291×110×101 mm (L×W×H)
Folded: 196×105×38 mm (L×W×H)

Weight
Gimbal + Built-in Tripod + Magnetic Phone Clamp 5 + Multifunctional Module 2 + Osmo FrameTap: Approx. 386 g

Data was collected in a controlled environment. Actual experience may vary.

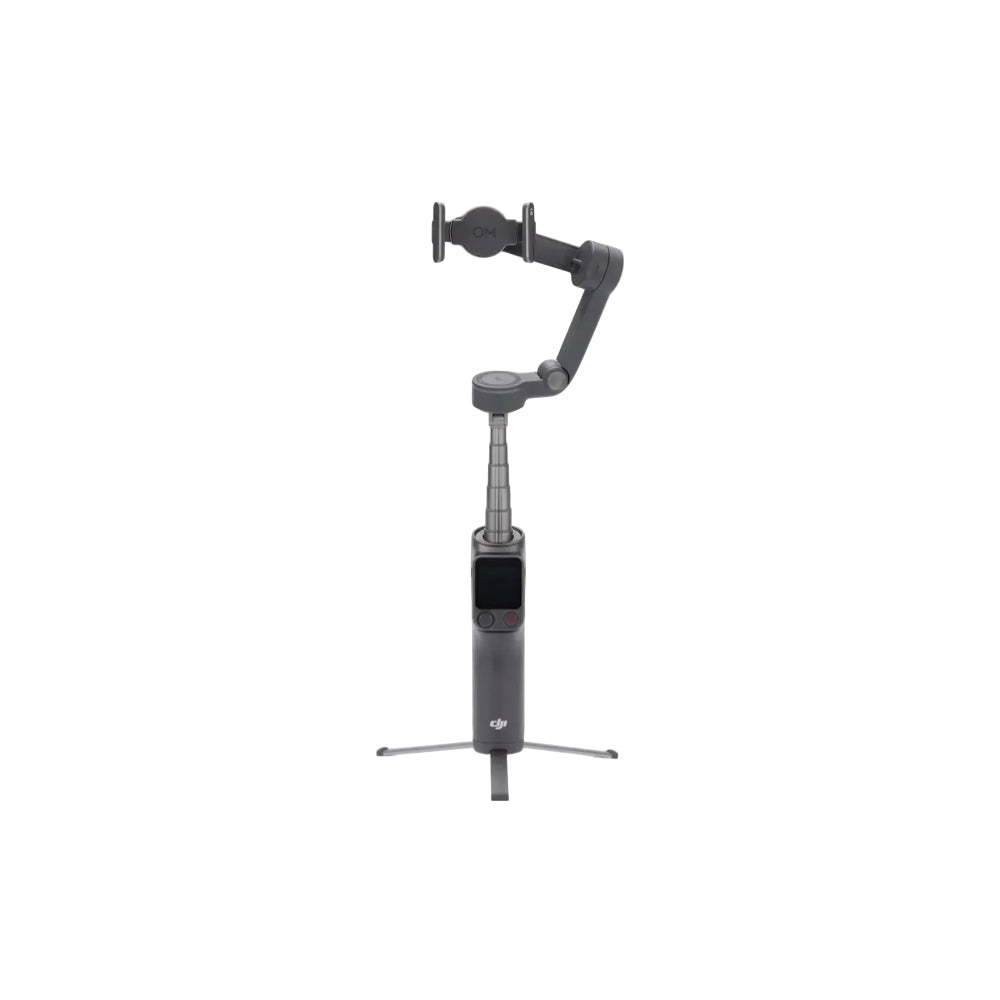

Extension Rod
Built-in Extension Rod
Max Extension Length: 215 mm

Compatible Phone Weight
170-300 g

Compatible Phone Thickness
6.9-11 mm

Compatible Phone Width
67-84 mm

Bottom Port
1/4″-20 UNC port

Tripod
Dimensions
Built-in Tripod
Length: 82 mm

Battery
Type
Li-Po 1S

Capacity
3350 mAh

Energy
12.06 Wh

Charging Temperature
5° to 40° C (41° to 104° F)

Operating Temperature
0° to 40° C (32° to 104° F)

Operating Time
Approx. 10 hours*

* Measured with the gimbal balanced, level, and stationary, using only Osmo FrameTap and no other accessories. The test consisted of 4 hours with FrameTap detached from the gimbal (connected via Bluetooth, no operations performed) and 6 hours with FrameTap attached to the gimbal.

** With the DJI OM Multifunctional Module's intelligent tracking feature enabled and the fill light off, the operating time is approximately 4.5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 3 hours.
With the DJI OM Multifunctional Module 2's intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours.
Using the gimbal to charge your smartphone will shorten the gimbal's operating time.

Charging Time
Approx. 2.5 hours

Measured under laboratory conditions at 25° C (77° F), using the DJI 65W Portable Charger, charging from 0% to 100% while the device was powered off. Data is for reference only. Actual performance may vary.

Gimbal Charging Port
USB-C

Phone Charging
Supported

Gimbal
Controllable Range
Pan: 360° (unlimited rotation)
Roll: -52° to 256°
Tilt: -37° to 55°

Mechanical Range
Pan: 360° (unlimited rotation)
Roll: -77° to 255°
Tilt: -224° to 100°

Max Control Speed
90°/s

Wireless Mode
Model
Bluetooth 5.3

Software
App
DJI Mimo

Multifunctional Module 2
Fill Light Illuminance
40 lux

This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.

Fill Light Color Temperature
2500-6500 K

Osmo FrameTap
Wi-Fi Video Transmission Distance
25 m

The Wi-Fi video transmission distance was measured to be over 25 meters when tested with an iPhone 14 and OPPO Find X8 Ultra in an open, unobstructed environment free of interference. Performance may vary depending on phone brands or models. Please refer to your actual experience.

Wi-Fi Protocol
802.11 a/b/g/n/ac/ax

Wi-Fi Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz

Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.

Wi-Fi Transmitter Power (EIRP)
2.4 GHz: < 20 dBm (CE/SRRC/MIC)
5.8 GHz: < 23 dBm (SRRC), < 14 dBm (CE)

Bluetooth Video Transmission Distance
10 m

Measured in an unobstructed environment free of interference.

Bluetooth Protocol
Bluetooth 5.4, BR/EDR

Bluetooth Operating Frequency
2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)
< 10 dBm

Touchscreen
Size: 1.4 inches
Resolution: 240×240
Brightness: 800 cd/m² ± 10%
Frame Rate: 60 Hz

Battery
Li-Po 1S

Charging Time
2.5 hours

Measured under laboratory conditions at 25° C (77° F), using the DJI 65W Portable Charger, charging from 0% to 100% while the device was powered off. Data is for reference only. Actual performance may vary.

Operating Time
Up to 4.5 hours in standby mode (device powered on, no user operations)

Operating Temperature
0° to 40° C (32° to 104° F)

Storage Temperature
10° to 30° C (50° to 86° F)

Charging Temperature
5° to 40° C (41° to 104° F)

GNSS
GPS L1 + Beidou B1 + Galileo E1 + QZSS L1 + GLONASS G1

Dimensions
53×37×19 mm (L×W×H)

Weight
29 g

Data was collected in a controlled environment. Actual experience may vary.

Product is not waterproof
